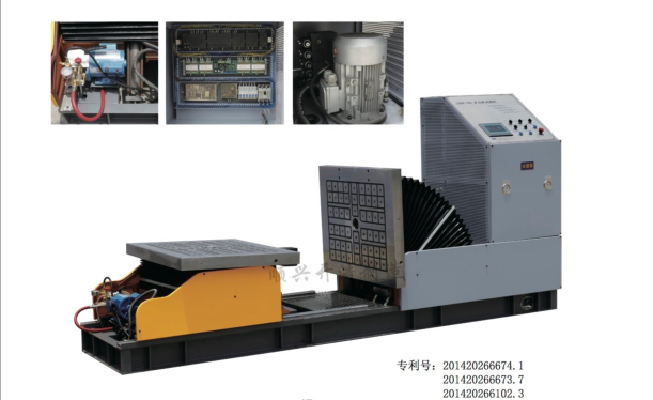

Die Trying Machine is a type of the multifunctional and convenient mold inspection machine. Our Die Trying Machine can be equipped with Electro-permanent magnetic chuck, which can easily control the mold titling and place so precisely.
1.Introduction:
Product Name:Die Trying Machine
Model No.:HMG-70S
Brand:SXKH
2.Advantages:
-1.It can be equipped with Electro-permanent magnetic chuck on fixed and movable plates to fix the mold in the unit so rapidly.
-2.Really simply for mold repair and mold try service.
-3.Mold shall be tilting 90 to 108 degree.
-4.Demould, high pressure of water path testing and mold fixing are automatically completed,which are all controlled .
-5.Custom made is accepted upon the customer’s usage and requirement.
3.Patent No.:20140266674.1 201420266673.7 201420266102.3
- Place of Origin: Zhejiang
- Brand Name: mould
- Model Number: HMG-70S
| Parameters | ||
| Item | Unit | Parameters |
| Clamping force | KN | 55 |
| Opening force | KN | 50 |
| Overturn A Ejecting Force | KN | 110 |
| Overturn B Ejecting Force | KN | 55 |
| Demold Ejecting Force | KN | 30 |
| Demold Ejecting distance | mm | 210 |
| Mold dimension | mm | 1000*800 |
| Overturn degree | ° | 90/180 |
| Remove range of mold | mm | 500 |
| Die open/close speed | mm/s | 60/40 |
| Overturn speed | °/s | 8 |
| Max weight of mold | Kg | 8000 |
| Machine size | mm | 3400*880*1680 |
| Machine weight | Kg | 3100 |
